10 Inspiring Brick Patio Edging Ideas for Outdoor Living
Selecting the right border pattern transforms a standard patio into an architectural centerpiece. Beyond aesthetic appeal, proper edging acts as a structural anchor that preserves the pavers quality durability and everlasting beauty across your outdoor living space.
Classic Soldier Course Brick Patio Edging Ideas
The soldier course remains the benchmark for residential and commercial hardscapes. Bricks are laid side by side in a clean vertical alignment, standing perpendicular to the patio field. This orientation locks interior pavers in place and provides maximum lateral resistance.
In Elmhurst estates and classic architectural settings, a soldier course using Unilock clay pavers delivers an unmistakable tailored finish. It creates a crisp boundary line that frames herringbone, basketweave, or running bond patio fields with timeless sophistication.
Sleek Modern Sailor Course Borders
For contemporary spaces prioritizing clean, expansive geometry, the sailor course lays bricks flat lengthwise along the perimeter. This creates a wider, lower-profile banding that softens edge transitions. When choosing the best brick patio patterns for your Chicago home 2026 guide, pairing a double sailor course with large-format modern slabs brings high visual structure to expansive entertaining zones.
Dynamic Sawtooth and Angled Herringbone Edges
Sawtooth and diagonal layouts introduce rich visual movement to border designs. By laying bricks at a precise 45-degree angle, you establish an interlocking zigzag profile that doubles as an erosion barrier and decorative threshold.
As demonstrated in technical reviews of retaining hardscapes like 5 Ways to Retain a Paver Edge – YouTube, angled configurations demand precise base compaction and careful joint alignment to prevent corner spalling under load.

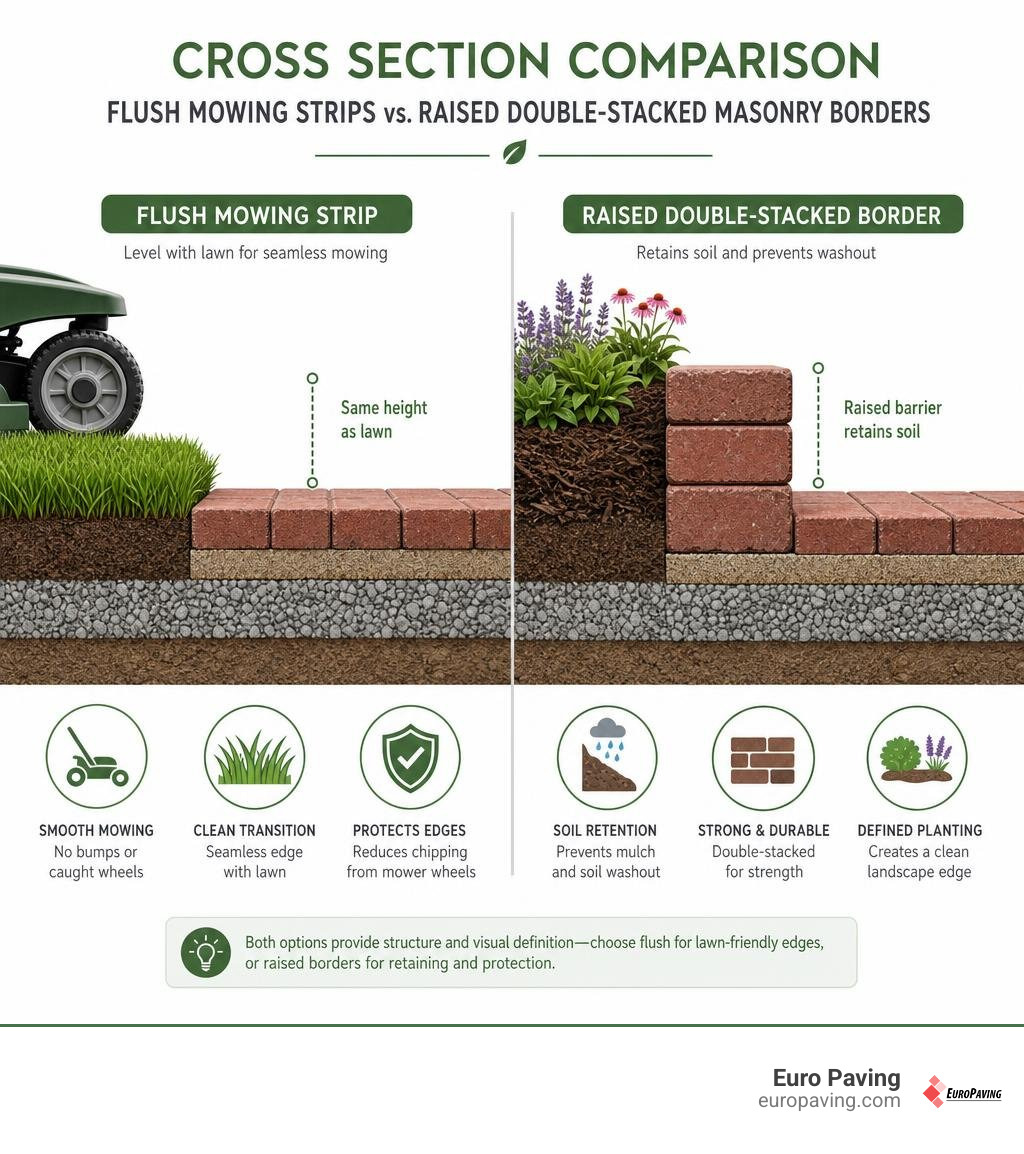

Level Flush Mowing Strips for Turf Transitions
A flush mowing strip is set at the exact height of the surrounding lawn turf. This engineering detail allows commercial and residential lawnmower wheels to glide smoothly over the border, preventing damaged paver corners and eliminating the need for post-mowing string trimming.
In refined Hinsdale landscapes, flush brick mowing strips create seamless transitions between manicured sod, deep garden beds, and patio entertainment areas while preventing turf grass roots from migrating into paver joints.
Raised Double-Stacked Retaining Borders
When a patio borders elevated plantings or softscape mulch beds, a single flat paver line is not enough. Raised double-stacked brick borders create a sturdy two-tier masonry barrier that stops mulch washout and soil erosion during heavy rains. Incorporating decorative brickwork edging into raised border transitions protects sensitive plantings while creating integrated seat walls along perimeter entertaining areas.
Bold Contrasting Color and Texture Banding
Using contrasting color palettes elevates standard hardscapes into custom design statements. Pairing warm tan or terracotta field pavers with dark charcoal sailor course banding creates a dramatic visual boundary. Integrating tumbled granite cobbles or smooth dimensional pavers provides tactile contrast that draws the eye and highlights custom fire pits or outdoor kitchen platforms.
Heavy-Duty Commercial Brick Patio Edging Ideas
Commercial plazas, retail courtyards, and restaurant dining patios experience heavy foot traffic and maintenance machinery loads. Heavy-duty commercial edging incorporates reinforced perimeters, structural restraint curbs, and dense-graded base layers.
For high-profile properties in Mount Prospect and surrounding retail corridors, these reinforced borders maintain crisp alignment without lateral spread, even under continuous commercial operation.
Stepped Elevation Terraces for Sloped Properties
Properties with natural slopes across Cook County and DuPage County require careful grade management. Stepped brick returns and integrated low retaining walls allow multi-tier patios to navigate sloped terrain smoothly.
In Arlington Heights residences, terracing a patio with structural brick step returns prevents soil subsidence and turns uneven ground into multi-level outdoor living rooms complete with private dining spaces and integrated fire features.
Permeable Infiltration and Drainage Channels
Managing heavy stormwater runoff is critical for long-term patio longevity. Pairing structural brick edging with permeable crushed stone or decorative river gravel drainage swales channels runoff away from home foundations.
As outlined in instructional resources like Brick Garden Edging: Beautify Your Outdoor Space in 12 Steps – This Old House, creating well-engineered transition edges ensures water filters deep into the sub-base rather than pooling along the patio perimeter.
Integrated Low-Voltage Hardscape Lighting Curbs
Hardscape lighting built directly into the border adds safety and evening atmosphere. Low-profile, under-cap LED light fixtures installed beneath perimeter coping bricks illuminate walkways, elevation changes, and patio margins without glaring into seated areas.
For homes in Norridge, illuminated borders turn dark backyard corners into welcoming, secure spaces for late-night gatherings.
Commercial vs. Residential Hardscape Applications
The design parameters, base specifications, and material selections for brick edging vary significantly between high-traffic public installations and private residential retreats.
| Specification Feature | Residential Patio Applications | Commercial Plaza & Pathway Applications |
|---|---|---|
| Typical Traffic Profile | Foot traffic, patio furniture, outdoor kitchens | Heavy pedestrian volume, maintenance vehicles, delivery carts |
| Excavation Base Depth | 6 to 10 inches (climate dependent) | 10 to 14+ inches (reinforced aggregate) |
| Edge Restraint Method | Heavy-duty spiked polymer edging / troweled haunch | Concrete bond beams / cast-in-place concrete curbs |
| Paver Unit Thickness | 60 mm (2⅜ inches) standard pedestrian rating | 80 mm (3⅛ inches) commercial load-rated pavers |
| Primary Design Focus | Aesthetic balance, lawn integration, outdoor living | Structural rigidity, ADA compliance, zero lateral spread |
High-Traffic Commercial and Multi-Family Specifications
Commercial paving demands uncompromising structural stability. For corporate courtyards, retail plazas, and municipal sidewalks, edges must withstand heavy pedestrian volume and snow clearing equipment.
We construct commercial perimeters using rigid concrete bond beams or cast-in-place curbs hidden just below the turf line. This eliminates edge migration, prevents joint failure, and satisfies municipal engineering standards across suburban business districts.
Residential Backyard and Architectural Integration
Residential hardscapes prioritize luxury aesthetics, family lifestyle, and seamless integration with the home’s architecture. From complete outdoor kitchen design installations to custom fire pits and quiet reading nooks, residential edging balances visual warmth with structural containment. Our 3D paving design services let homeowners preview how different border bands complement siding, trim, and surrounding gardens before work begins.
Professional Engineering: Securing Brick Patio Borders in the Chicago Climate
The extreme freeze-thaw cycles of the Midwest present a major threat to outdoor hardscapes. When water enters uncompacted soils and freezes, horizontal expansion pushes unanchored bricks outward, causing gaps and sunken stones.

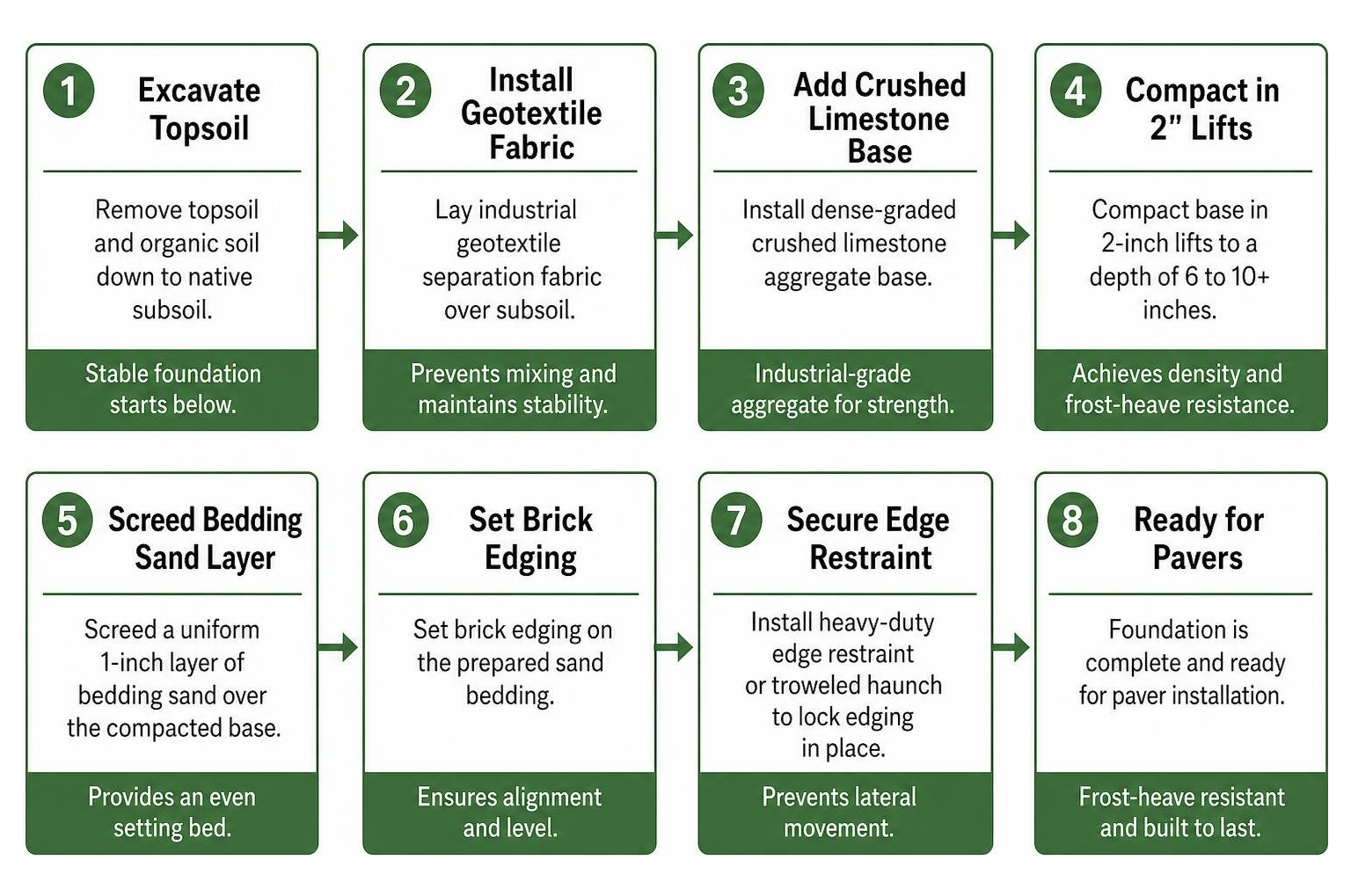

Engineered Aggregate Sub-Base and Bedding Preparation
A stable border begins beneath the surface. Topsoil contains organic matter that shrinks and swells with moisture, making it unsuitable for direct paving support. We excavate down to native subsoil, lay industrial geotextile separation fabric, and install a dense-graded crushed limestone aggregate base.
In cold freeze-thaw zones, this base is compacted in 2-inch lifts to a depth of 6 to 10+ inches. A uniform 1-inch bedding sand layer is then screeded over the compacted foundation to provide an even setting bed that drains water effectively.
Commercial-Grade Restraints vs. Concrete Bond Beams
To ensure zero lateral drift, professional installations use heavy-duty rigid restraints secured into the compacted stone base with 10-inch steel spikes driven every 8 to 12 inches.
For curved transitions or high-stress corners, troweled concrete toeing (haunching) anchors the outer perimeter without showing above ground level. Once the bricks are set, polymeric sand is swept into the joints and mist-activated, locking each paver into an impervious, weed-resistant grid.
Frequently Asked Questions About Brick Patio Edging
How do professional contractors prevent brick patio edging from shifting over time?
Contractors prevent shifting by excavating below organic topsoil, building a 6- to 10-inch compacted aggregate base, anchoring commercial-grade edge restraints directly into the gravel foundation with steel spikes, and setting the bricks with polymeric sand to seal joint gaps against moisture infiltration.
What is the best brick material for surviving Chicago freeze-thaw winters?
The best material is clay pavers rated “SW” (Severe Weather) or dense commercial-grade Unilock concrete pavers. These units have exceptionally low water absorption rates, preventing the spalling, surface scaling, and cracking caused by freeze-thaw expansion.
Can brick edging be integrated with existing concrete or driveway surfaces?
Yes. Professional contractors regularly integrate brick borders with existing asphalt or concrete driveways and walkways. Using concrete saw-cutting, expansion joints, and mortar-bonded transition courses, brick borders add distinctive curb appeal while creating smooth, durable transitions between surfaces.
Elevate Your Property with Euro Paving
A custom brick border does more than frame your patio—it protects your hardscape investment for decades. At Euro Paving, we bring nearly 20 years of dedicated craftsmanship to residential and commercial hardscaping projects throughout Chicago and the surrounding suburbs, including Elmhurst, Hinsdale, Mount Prospect, Norridge, and Arlington Heights.
As a certified Unilock Authorized Contractor, we combine full-service 3D paving design with lifetime-guaranteed materials to deliver driveways, walkways, retaining walls, commercial parking lots, and luxury paver patios that withstand severe Midwest winters.
Schedule a consultation with our paving experts today to bring your custom outdoor living vision to life.
